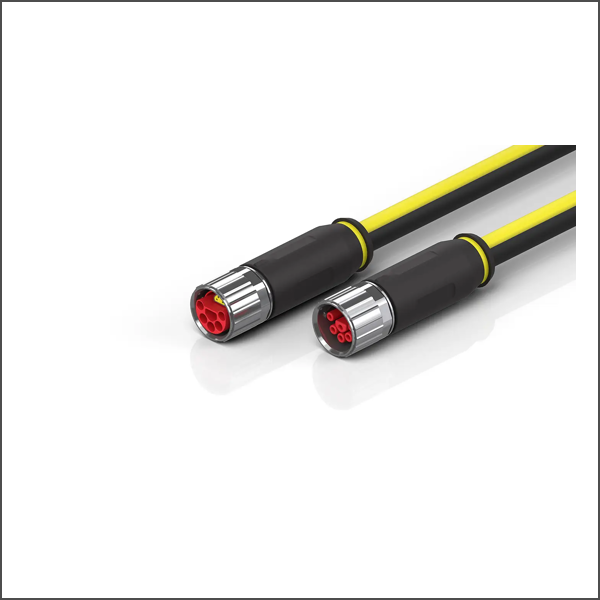

ZK7321-3637-A290 B23, ENP cable, PUR, 4 G 4.0 mm² + 2 x 2.5 mm² + (1 x 4 x AWG22), drag chain suitable, key 1 (user-defined voltage)
SKU: ZK7321-3637-A290
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Technical data: Head A
Installation size: B23
Connector type: plug
Contact type: female+male
Number of positions (face): pins 3+PE+2+4
Coding: EtherCAT-coded
Wire termination: crimp connection
Body color: black
Technical data: Head B
Installation size: open end
Technical data: Meterware
Cross-section (Ethernet): 1 x 4 x 0.34 mm² (AWG 22)
Cross-section (power): 4 x 4.0 mm² (approx. AWG12)
Cross-section (signal): 2 x 2.5 mm² (approx. AWG 14)
Use drag-chain: suitable
Material jacket: PUR (polyurethane)
Outer cable diameter: 15.6 mm ± 0.4 mm (0.6142" ± 0.0157")
Jacket color: black (similar to RAL 9005) with yellow stripe (similar to RAL 1003)
