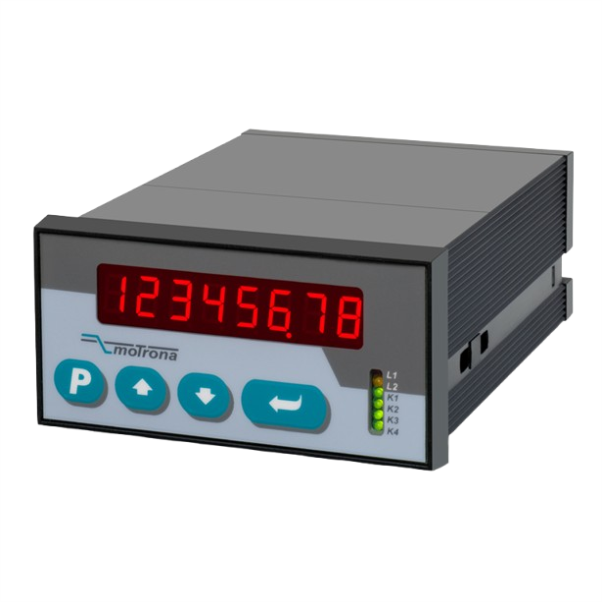

High Speed Position Counters ZR330
SKU: ZR330
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The ZD/ZA/ZR 330-644 series includes the Motrona ZR330 High Speed Position Counter, which is intended for high-end applications needing accurate, dependable, and quick counting.
Fast position or event counting, summation, differential counting, cutting length indication, and diameter computation are just a few of the industrial applications that can benefit from this range of high-speed position counters and differential counters with two encoder inputs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 encoder inputs with format A, /A, B, /B [HTL / TTL / RS422, single channel, dual channel, symmetric or asymmetric].
Input Frequency: Up to 1 MHz per encoder.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: Available in some models.
Analog Output: Fast analog outputs for ±10 V and 0/4 ... 20 mA (Series ZA).
Serial Interface: RS232 interface included RS485 interface available in Series ZR.
Display: Choice of 6-decade display (15 mm, 0.56 inches) or 8-decade display (10 mm, 0.36 inches).
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
