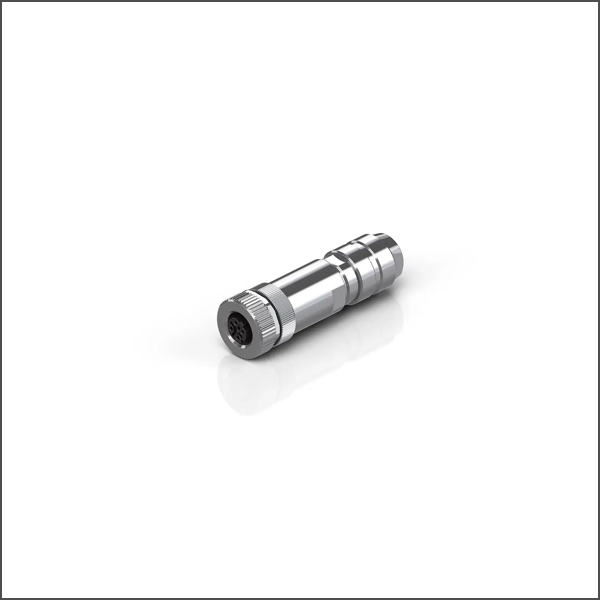

ZS1090-0010 M12 socket field assembly
SKU: ZS1090-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
socket, field assembly, Ethernet/EtherCAT, IP67, straight, socket, 4-pin, D-coded, 0.14…1.15 mm², Ø 5…8 mm, shielded
Buy currently uses Select Automation shop pricing and checkout.
Shielding: yes
Installation size: M12
Connector type: socket
Contact type: female
Number of positions (face): 4-pin
Coding: D‑coded
Wire termination: screw connection
Max. wire cross-section: AWG16 ... AWG26 (1.5 mm² ... 0.14 mm²)
Max. cable outer diameter: 4 - 8 mm
Body color: metal
