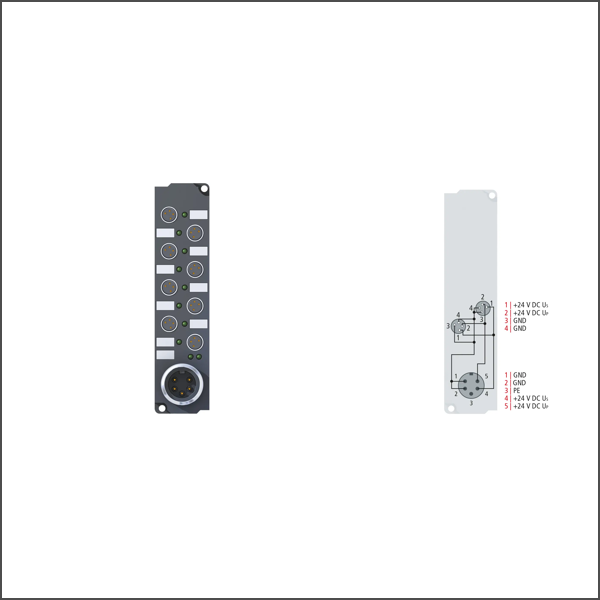

ZS2020-4304 Power distribution box
SKU: ZS2020-4304
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
power distribution box, 4 x M8, 4-pin, 1 x 7/8“ 5-pin
Buy currently uses Select Automation shop pricing and checkout.
Number of outputs: 4
Power supply connection: 7/8" plug, 5-pin
Outgoing circuits: M8, screw type, 4-pin
Current load: I∑ = 4 A per US and UP
Dimensions (W x H x D): 30 mm x 86 mm x 31 mm
Operating temperature: -25…+60 °C
Storage temperature: -40…+85 °C
Protection rating: IP65/66/67 (according to EN 60529)
Installation position: variable
Nominal voltage: 24 V DC
Material: PA6 (polyamide)
Approvals/markings: CE
