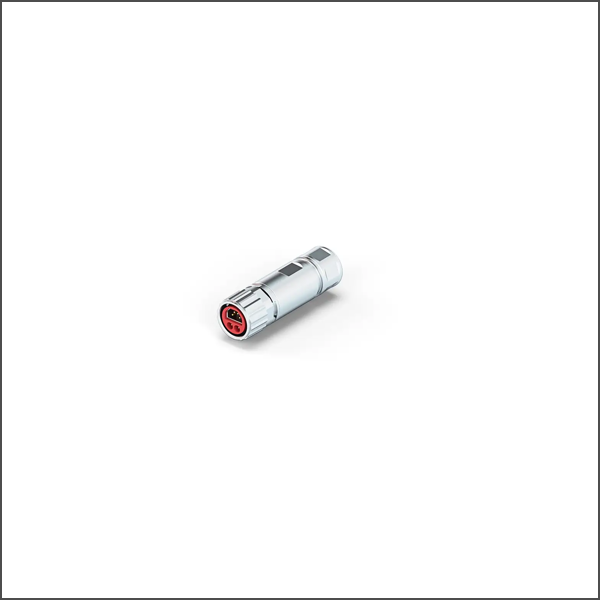

Plug field assembly ZS7100-0001
SKU: ZS7100-0001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Straight, shielded, P-coded B12 plug for EtherCAT P cables. B12, plug, metal, shielded, crimp, straight, male+male, 2+4-pin, P-coded, IP65/67, Ø 8.5…9.5 mm
Buy currently uses Select Automation shop pricing and checkout.
Shielding: yes
Installation size: B12
Connector type: plug
Contact type: male+male
Number of positions (face): pins 2+4
Coding: P-coded
Wire termination: crimp connection
Max. wire cross-section (power): AWG18/0.75 mm²
Max. wire cross-section (Ethernet): AWG22/0.34 mm²
Max. cable outer diameter: 8.5 ... 9.5 mm
A1: 60.00 mm
A2: 18.80 mm
