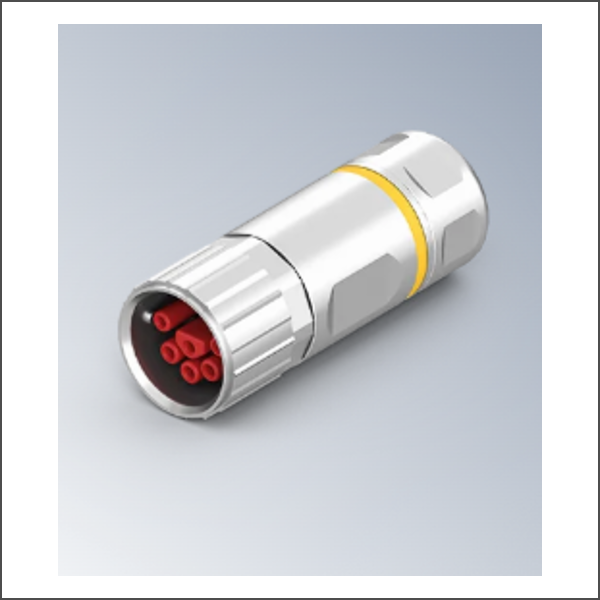

ZS7200-A016 Socket field assembly EtherCAT/Ethernet
SKU: ZS7200-A016
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
B17, socket, metal, shielded, crimp, straight, male+female, 3+4-pin, EtherCAT-coded, IP65/67, Ø 10.0…11.5 mm, for power contact 2.5 mm², PinØ 1.8 mm
Buy currently uses Select Automation shop pricing and checkout.
Shielding: yes
Installation size: B17
Connector type: socket
Contact type: male+female
Number of positions (face): pins 2+PE+4
Coding: EtherCAT-coded
Wire termination: crimp connection
Max. wire cross-section (power): AWG14/2.5 mm²
Max. wire cross-section (Ethernet): AWG22/0.34 mm²
Max. cable outer diameter: 10.5...11.5 mm
