Signal Converter Incremental - Analog - Serial RS232-RS485 ZU210
SKU: ZU210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

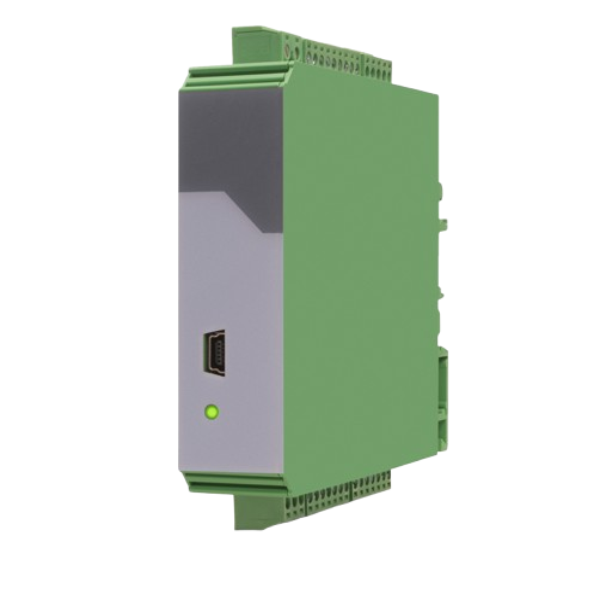

The Motrona ZU210 Signal Converter is intended to transform incremental signals (HTL, TTL, and RS422) into serial RS232/RS485 or analog signals (±10 V, 0/4... 20 mA).
It is a flexible device with a resolution of 16 bits for analog outputs and the ability to handle input frequencies up to 1 MHz.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Pulse Inputs: A, B (HTL), A, /A, B, /B (RS422, HTL).
Input Frequency: Up to 1 MHz (RS422), 200 kHz (HTL).
Analog Output: ±10 V or 0/4 ... 20 mA, 16-bit resolution.
Serial Interface: RS232 and RS485 for configuration and serial readout.
Power Supply: 18 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
Setup: Via operator software OS6.0.
