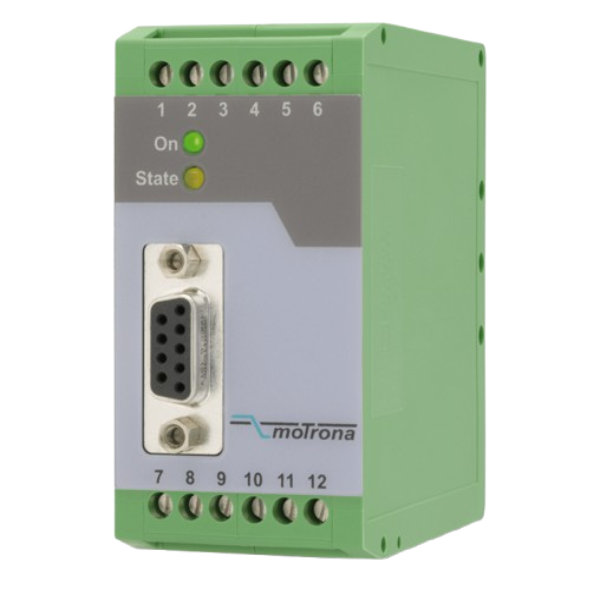

Signal Converter: Incremental Counter - Analog - Serial
SKU: ZU252
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial applications where the outcome of an incremental position or event count has to be shown as an analog signal and/or serial data word, the ZU252 is an incredibly powerful yet reasonably priced converter.
When a rotary pulse encoder, a length measuring device, or a sensor detects an incremental measured value (angular position, distance, or position), the compact signal converter transforms it into a corresponding analog value (voltage or current) and a serial data format.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse inputs with format A, B, 2 x 90° [HTL].
or A, /A, B, /B [RS422].
Input frequency up to 1 MHz [RS422] or 200 kHz [HTL].
Scalable 14-bit analog output for ±10 V.
or 0/4 ... 20 mA.
Output polarity ± follows rotation direction (phasing A / B).
Power supply 18 ... 30 VDC.
Snap-on housing for top hat rail.
(according to EN 60715).
Serial RS232 / RS485 interface.
Very short conversion time (about 1 ms).
Easy to set up by simple TEACH procedure, or by PC.
(operator software: see Support).
Free scaling, programmable linearization curves etc.
Power units for 24 V power supply.
