Small-sized Position and Event Counter ZX020
SKU: ZX020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

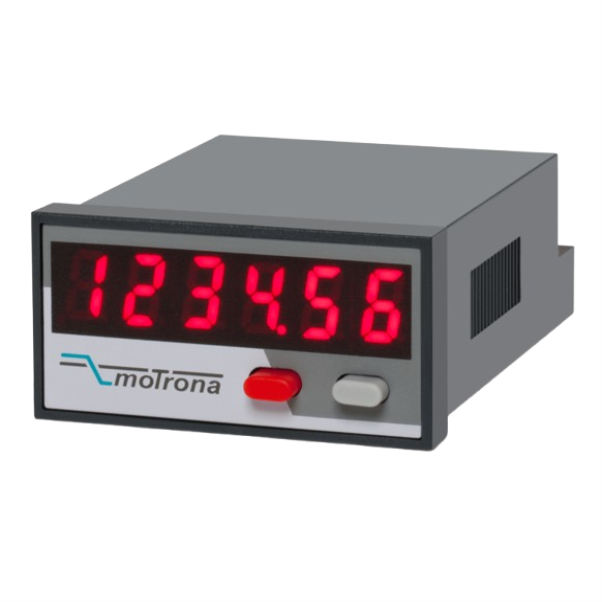

A flexible and small gadget, the Motrona ZX020 Small-sized Position- and Event Counter is made for counting positions and events in a variety of industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Signals:
Pulse Inputs: Supports pulse inputs with formats A, B, and 90° (HTL).
Static Input: Includes a static input for Set/Reset (HTL).
Input Frequency: Up to 20 kHz.
Display:
Type: 6-digit LED display with an 8 mm height.
Display Range: -199999 to 999999.
Counting Frequency: 15 to 60 kHz, depending on the counting mode.
Counting Modes:
Position Counter: Counts positions based on the input pulses.
Event Counter: Counts events with programmable impulse scaling factors.
Sum/Differential Counter: Calculates the sum or difference of two counting inputs.
Quadrature Count: Supports quadrature counting for A/B and 2 x 90°.
Power Supply:
Voltage Range: Operates on a 24 VDC power supply.
Power-Down Memory: Retains data for up to 10 years.
Housing:
Design: Compact norm panel housing with dimensions 48 x 24 x 59 mm (1.89 x 0.94 x 2.32 inches).
Ease of Use: Easy to set up with two front keys and menu support.
