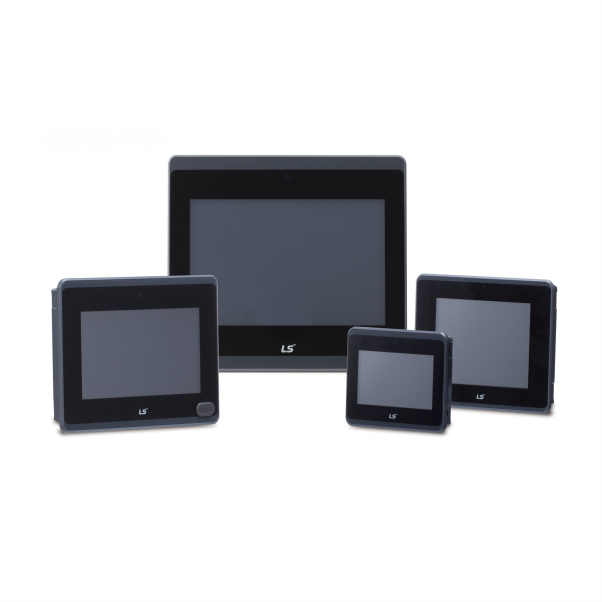

XGT Panel 7" TFT LCD 24-bit Color 24V DC 1x Ethernet RS485/422.2 x USB RS232/RS485
SKU: eXP2-0700D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
There is a vertical mounting option.
Configuring the XP-builder: (COMMON) (Setting for a Project Property)
The XGT Panel can show PDF files.
In the event of an alarm, the troubleshooting content for the alarm can be seen on location as a PDF file.
A PDF viewing object can be used to view PDF files on an FTP server.
An entity with the ability to connect to an FTP server and download a given file is called an FTP client.
A PDF viewer object can be used to view PDF files on an FTP server.
With VNC Viewer, a PC or HMI can be remotely monitored.
Via XP-Manager, download the VNC server to the HMI.
Install a Universe VNC server (such as Real VNC, Ultra VNC, etc.) on your computer.
To the project screen, add the VNC Viewer object.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Type: TFT color LCD.
Screen size: 17.8cm (7”)
Display resolution: 800 x 480 pixels.
Colour Indication: 24-Bit colour (16.7M)
Indication degree: left/right: 70 deg, Upper: 50 deg, Lower: 70 deg.
Blacklight: LED type (Supports Blacklight Auto-off function)
Blacklight duration: 50,000 hours
Touch panel: 4-wire Resistive, analogue.
Audio output: Magnetic buzzer (85dB)
Process: 800MHz
Memory: Drawing: 64MB, Operating RAM: 512MB, Backup RAM: 128KB
Ethernet: 1 channel, IEEE802.1a, 10Base-TX
USB device: 1 channel, USB 2.0 Device (for download and upload project)
Multi-language
GIF format is available.
Certifications: CE, UL (Cul), UL Type 4X, KC
Protection: IP65
Dimension (mm): 208 x 154 x 44.4.
Panel cut (mm): 192 x 138.
Rated Voltage: DC 24V
Power consumption(W): 6
