400W Servo 230V Etherca Enhanced Enc./Resolver Cia402 Profile
SKU: iX7NHA004U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

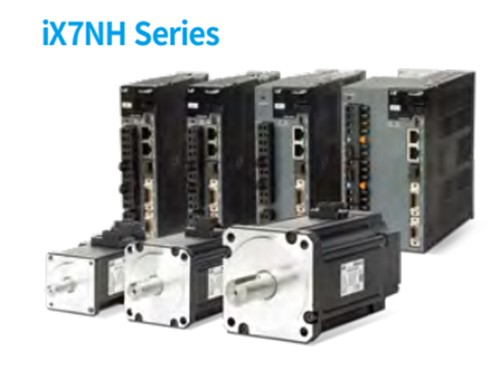

iX7NH Series:
Compact and practical.
Highly efficient heat dissipation: 100W ~ 1kW drive; optimized installation space.
Lowered space by 16% and lowered drive depth for 100W and 200W drives by designing and applying a tiny heatsink, measuring 172.5 → 145.2 mm.
Greater Variety in Encoders and Features Supported.
BiSS Quadrature Tamagawa Sinusoidal, SSI Nikon, and Panasonic EnDat 2.2 (Optional).
Encoders are supported for temperature monitoring.
Allowed to store four maximum channels, including the alarm code and the time and date of the alarm occurrence.
Improved On-the-Go (OTG) functionality for USB: Firmware update for parameter alarm history backup.
More Variety in Faster Communication Methods Provided.
Fieldbus: Modbus TCP and Ether CAT.
Minimum cycle time for communication: 0.125 Ms.
Web server functionality is built in.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
400W Servo 230V.
Ether Cat.
Enhanced Encoder/Resolver.
Cia402 Profile.
Main input power: 1-phase AC100~120(V), 1-phase AC200~240(V), 3-phase AC200~240(V), (-15~+10%), 50~60(Hz).
Control input power: 1-phase AC100~120(V), 1-phase AC200~240(V), (-15~+10%), 50~60(Hz).
Rated current: 3.0A.
Peak current: 10.5A.
Encoder type: Quadrature (incremental), BiSS-B, BiSS-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2, Sinusoidal, Analog Hall, SSI, Nikon, Panasonic.
Speed control range: Max. 1:5000.
Encoder decimation output: Differential line driver 3 channels AO, /AO, BO, /BO, ZO, /ZO up to 6.5 (Mpps) on 4x interpolation.
Analog input: Input voltage range: -10~+10(V), Function: Analog torque limit (1 channel, unallocable).
Analog output: Total 2 channels (Allocable): able to selectively allocate total 25 types of output.
Safety function: 2 input channels (STO1 and STO2), 1 output channel (EDM).
Operating temperature: 0~+50°C/ -20~65°C.
Operating Humidity: under 80% RH/ under 90% RH (noncondensing).
Environment: keep indoors, avoid corrosive/ flammable gas or liquid.
