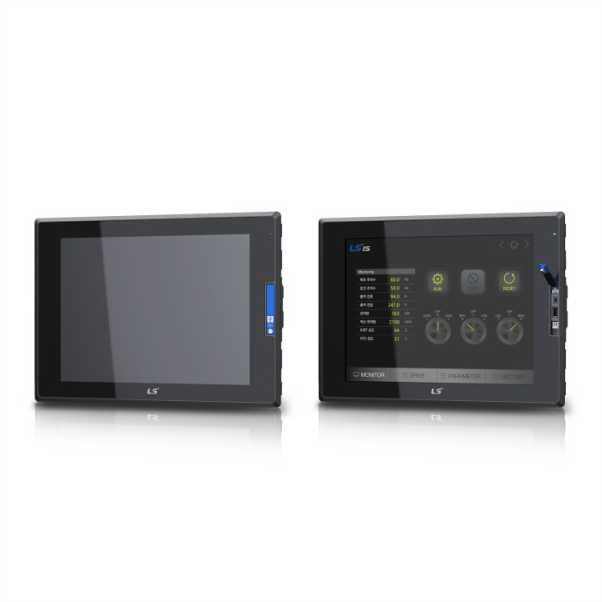

XGT Touch Panel, 12.1" TFT 16-M colours SVGA DC12-24V powered based on Win
SKU: iXP2-1200D-EX
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The iXP series is carried over into this next generation of high-performance HMI, which optimizes performance.
High-speed processing and communication via the capacitive touch method are made possible by the CPU's twin core.
It is feasible to operate easily.
Tempered glass and aluminium bodies were used to minimize equipment issues and noise on industrial sites.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display type: TFT colour LCD.
Screen size: 12.1.”
Display resolution: 1, 024 x 768.
Colour indication: 24-bit colour (16.7M colours)
Blacklight: LED method, automatic on/Off support.
Blacklight lifetime: 40, 000 hour
Touch panel: Capacitive touch.
Audio output: Magnetic buzzer (85Db)
Processor: 1GHz, Dual core
Memory: flash: 1GB, operating RAM: 1GB, Backup RAM: 1Mbyte.
Video output: 1Xhdmi
Multi-language.
Animation: gif format
Protection standard: IP66, conform to the UL type 4x, NEMA 4x standard.
Dimensions: 313 x 239 x 60
Panel cut (mm): 301.5 x 227.5.
Power consumption (W): 30
Features:
Ambient temperature: 0°C~+50°C
Storage temperature: -20°C ~+60°C
Ambient humidity: 10~85% RH, without dew condensation
Storage humidity: 10~85% RH, without dew condensation
Operating ambience: free from corrosive gas and excessive dust
Altitude: 2, 000m (6562 ft) or below
Pollution degree: 2 or under
Cooling method: natural air-cooling
