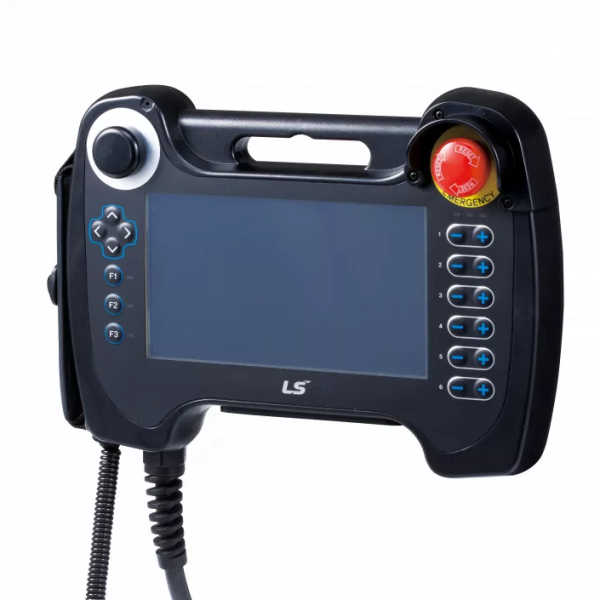

Handheld HMI 7" TFT LCD 24VDC 24-bit colour Pushbuttons 1 Ch. Ethernet USB RS-485 10M cable
SKU: iXP2H-0704D10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Features:
Outstanding visibility with a big screen and good definition.
XP-Builder makes creating projects simple.
Easy project file uploading and downloading across Ethernet and USB ports (multilingual support).
Put the Enable Switch in place.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Type: TFT color LCD.
Screen Size: 7.0"
Screen resolution: 1024 x 600 pixels.
Colour Indication: 24-Bit colour (16.7M)
Blacklight: LED method, Automatic On/Off support
Blacklight lifetime: 50,000 hours
Touch panel: Resistive overlay (Pressure type)
Audio: Magnetic buzzer (12Ø 85 dB)
Processor: ARM Cortex-A9 800 MHz, single core
Memory: Flash: 8GB (small memory: 128MB), Operating RAM: 1GB, Backup RAM: 1MB.
Ethernet: 1 x 10Base-T/100Base-TX
USB host: 1 x USB 2.0
RS-232C: 1 x RS-232C (Terminal block)
Multi-language
GIF format supported.
Certification: CE, KC
Protection: IP42 (Front)
Dimensions(mm): 195×270×72 (Excluding cables)
Power: DC 24 V ±5%
Power consumption(W): 12
Communication Port: RS422/485
Communication Port: Ethernet
Communication Port: USB (Host)
Cable Length: 10m
