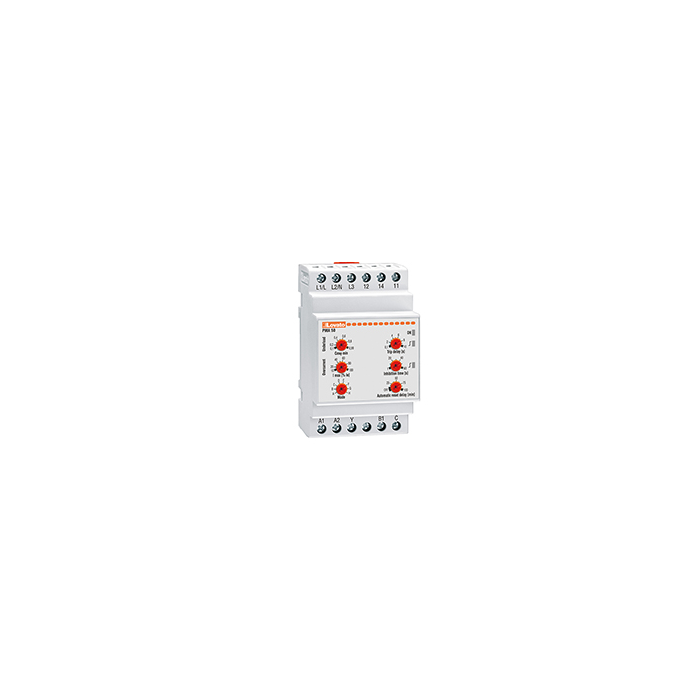

PUMP PROTECTION RELAY 220-240VAC
SKU: PMA50A240
Out of stock
Availability: Out of Stock
Short Description
PM series pump protection relay:
- Range of voltage control: 80 to 660 VAC.
- Systems with one or three phases (choice).
- Minimum Cosϕ and maximum AC current. Postponed travel.
- Inaccurate phase sequence and phase loss (instantaneous trip).
- Relay for protecting the pump from dry running and an additional AC power source.
Adjustments:
- Maximum Cosϕ cutoff: 0.1-0.99.
- Threshold for maximum (over)current: 10–100%.
- Trip time for maximum current and minimum cosine: 0.1–10 s.
- Inhibition time: 1–60 seconds for external input or power up.
- Time of automatic reset: Off - 100 minutes.
- Now choose between 5A and 16A
- SERIES: PM series
- DESCRIPTION: Pump protection relay (against dry running)
- MONITORED VOLTAGE: 220 - 240 VAC
- MODULE WIDTH (MM): 54 (aligns with standard MCB's)
