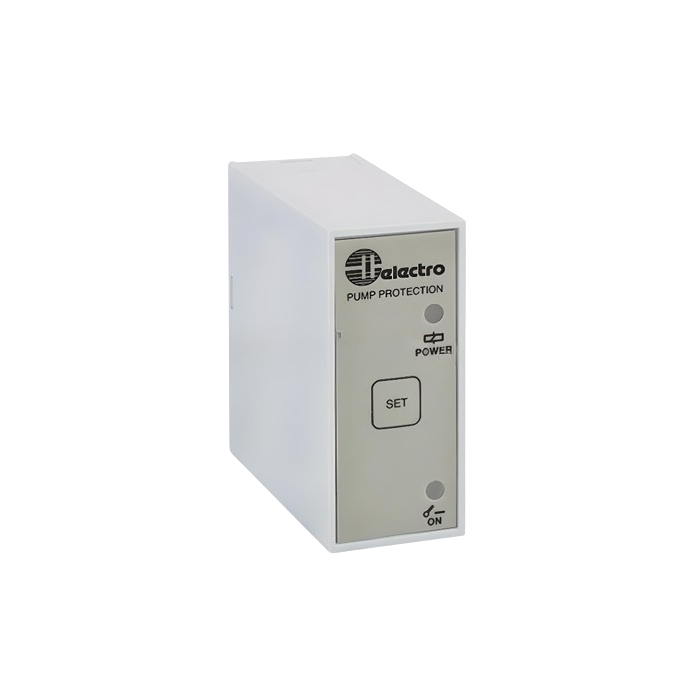

PUMP PROTECTION RELAY 230VAC, RECOVERY TIME: 1-2-4-8 HOURS

ZAR 1,236.07
Out of stock
SKU
LP2230A

Relay for pump protection:

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • Pump protection relay with microprocessor basis that can guard against all major power line problems for submersible pumps.
  • Under typical operating circumstances, the device calibrates itself and saves these settings in non-volatile memory.
  • Additionally, the machine has a reset delay built in to allow the borehole to refill itself in current circumstances.
  • The device will attempt three times to avoid permanently tripping with transient obstructions in the event of an overcurrent.

Features:

  • Protection relay based on microprocessor.
  • Above or below the present level of protection.
  • Protection against over- and under-voltage.
  • Ability can be chosen with the current reset delay.
  • Three attempts to fix the overcurrent.
  • Pump self-diagnosis on its own automatically.
  • LED indicator of every issue.

Specifications:

  • DESCRIPTION: Pump protection relay
  • PHASE: Single
  • RECOVERY HOURS: 1-2-4-8 hours
  • CONTACT: 10A SPDT
  • HYSTERESIS: 0.05
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
