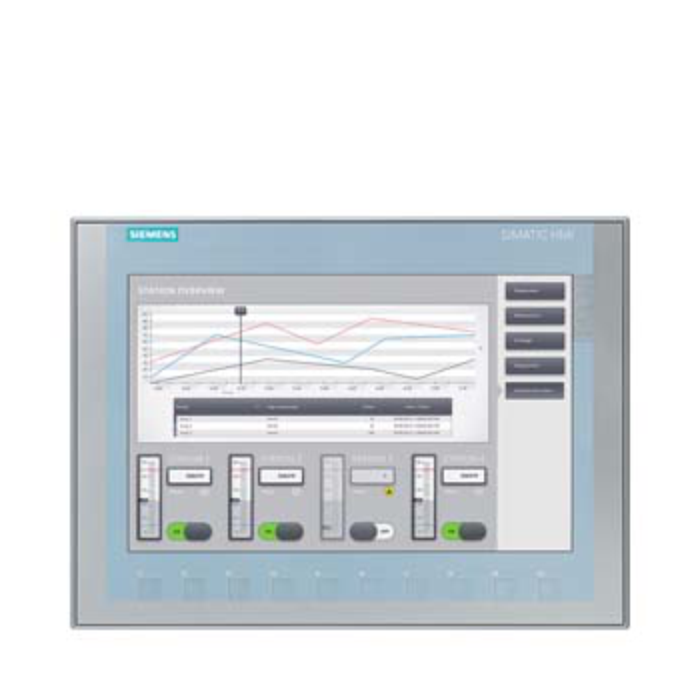

Siemens S7-1200 Operator control and monitoring SIMATIC HMI KTP1200 Basic Color 12"
SKU: 6AV2123-2MB03-0AX0
Out of stock
Availability: Out of Stock
Short Description
Pricing available on request
Description:
- This panel features a 12-inch widescreen TFT display with 1280 × 800 resolution, combining touch functionality with 10 programmable function keys.
- It’s optimized for PROFINET-based systems, offering seamless integration with SIMATIC S7-1200 and S7-1500 controllers.
Specifications:
- Display Size: 12" TFT colour.
- Resolution: 1280 × 800 pixels.
- Touch Type: Analog-resistive.
- Function Keys: 10 programmable keys.
- Backlight Lifetime: ~20,000 hours.
- Processor: ARM-based.
- RAM / Flash: 128 MB each.
- User Memory: 10 MB.
- Interface: 1 × Ethernet (RJ45), 1 × USB host.
- Protocols Supported: PROFINET, Modbus TCP/IP, EtherNet/IP.
- Power Supply: 24 V DC (19.2–28.8 V range).
- Power Consumption: ~6 W.
- Dimensions (W×H×D): 330 × 243 × 39.4 mm.
- Mounting Cutout: 314 × 227 mm.
- Weight: ~1.9 kg.
- Environmental Ratings:
- Operating Temp: 0 to +50 °C.
- Storage Temp: –20 to +60 °C.
- Humidity: Up to 90% (non-condensing).
- Protection Class: IP65 (front), IP20 (rear).
- Vibration/Shock: IEC 60068-2 compliant.
- Certifications & Approvals:
- CE, UL, CSA, RCM, KC.
- Marine: ABS, BV, DNV, LRS, RINA, NK.
- EMC: EN 61000-6-2 / EN 61000-6-4.
- Environmental Product Declaration (EPD).
- Global Warming Potential: ~85 kg CO₂ eq.
