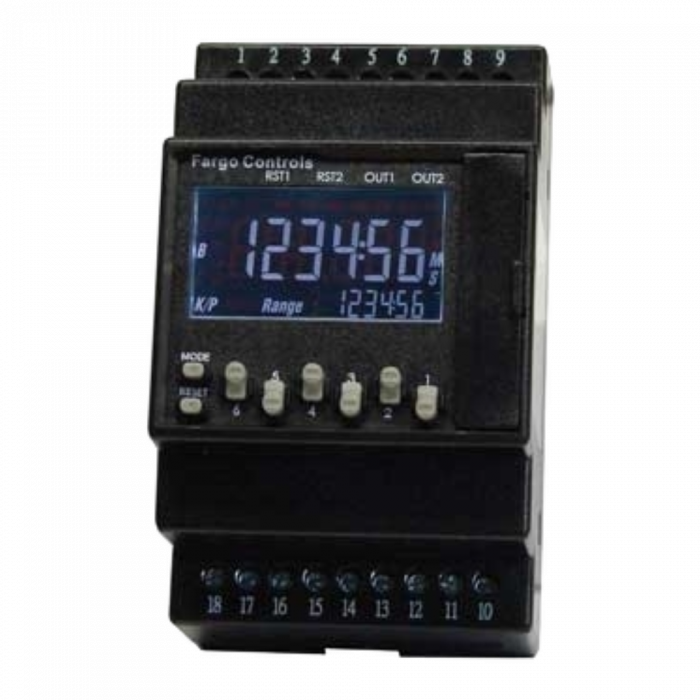

Timer/Counter/Tachometer VDC Din Rail Mounting
TC-PRO483 Series:
- Highly visible display with backlit LCD
- Conform to the key design of ergonomics
- Five key protection modes: KP-1~5
- EEPROM (overwrites: 100,000 times min.)
- 12VDC external supply power
- Applied to connect PC/HMI/PLC/DCS
- Free PC software, "TC-SOFT"
- Support Modbus Protocol
- Support RS-232/485/422
Specifications:
- Classification: Digital Timer/Counter/Tachometer
- Supported configurations: timer, dual timer, 2-stage timer, 1-stage counter, 2-stage counter, total counter, batch counter, dual counter, twin counter, multi-mode, and tachometer
- Operating voltage range: 100~240 VAC (50/60Hz), 24 VDC
- Installation: DIN rail or flush mounting
- Max. counter speed: 30 Hz/1 KHz/5 KHz (10 KHz for tachometer)
- Interface: RS-232/485/422
Timer mode:
- Elapsed time (UP)
- Remaining time (down)
- (Selectable)
Control ouptut:
- Relay contact output: 5A at 250 VAC
- Transistor output: NPN open collector, max. 100mA at 30 VDC
| SKU | TC-PRO483CRD-D |
|---|---|
| Brand | Yottacontrol |
